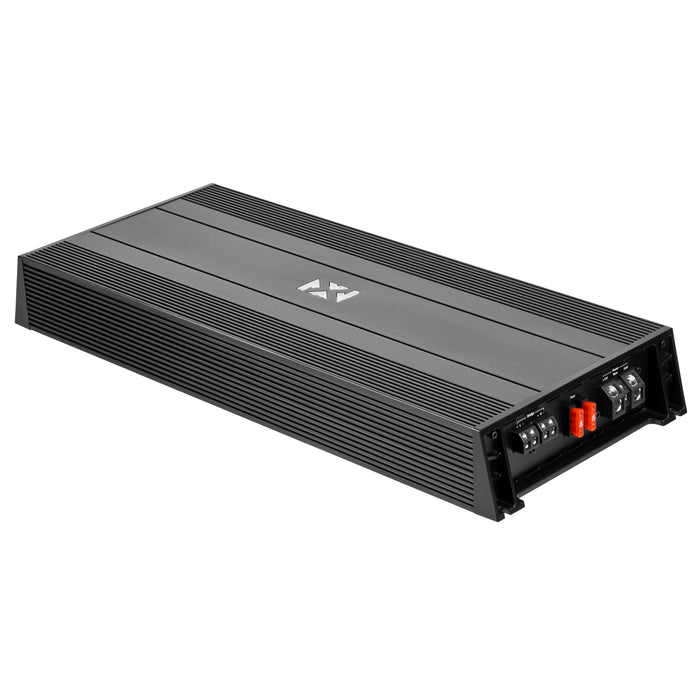

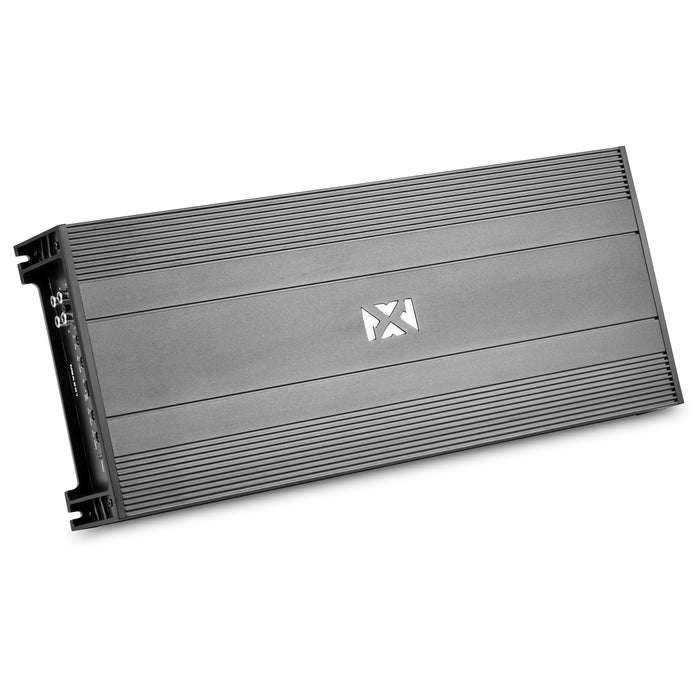

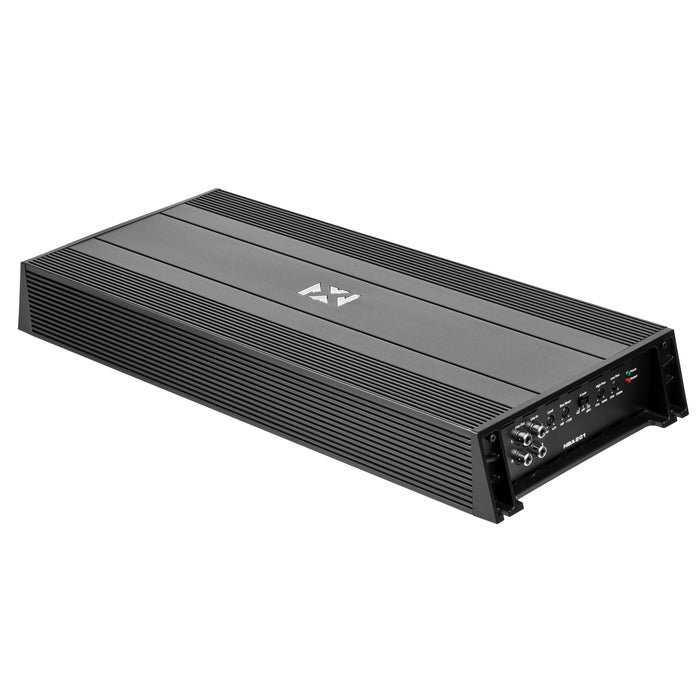

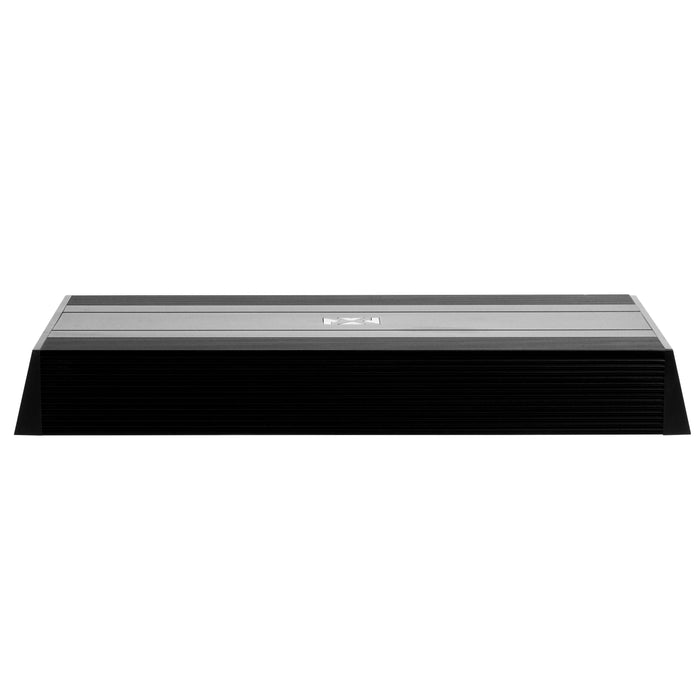

NBA201 1400W Peak (700W) RMS N-Series Class A/B 2-Channel Amplifier

NBA201 1400W Peak (700W) RMS N-Series Class A/B 2-Channel Amplifier

Sale Sale
$119.99
$119.99 - $119.99
$119.99
$99.99
$99.99 - $99.99
$99.99
Trust Badge 1
Trust Badge 2
Trust Badge 3
Trust Badge 4

Product Details:

  • Class A/B 2 ohms Stable 2-Channel Amplifier
  • RMS Power Rating:
    • 4 ohms: 200 watts x 2 channel
    • 2 ohms: 350 watts x 2 channel
    • Bridged, 4 ohms: 700 watts x 1 channel
  • Total power output: 700 watts
  • CEA-2006 Compliant Amplifier

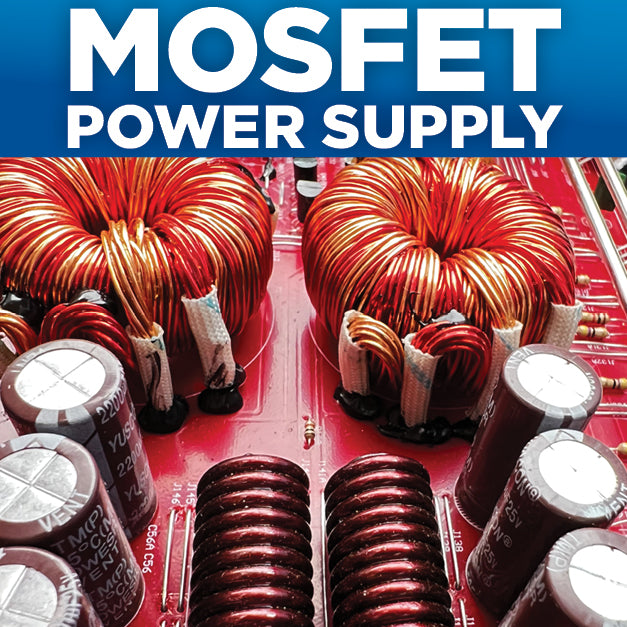

  • Pulse Width Modulated MOSFET power supply
  • 3-way protection circuitry (thermal, overload, and speaker short protection)

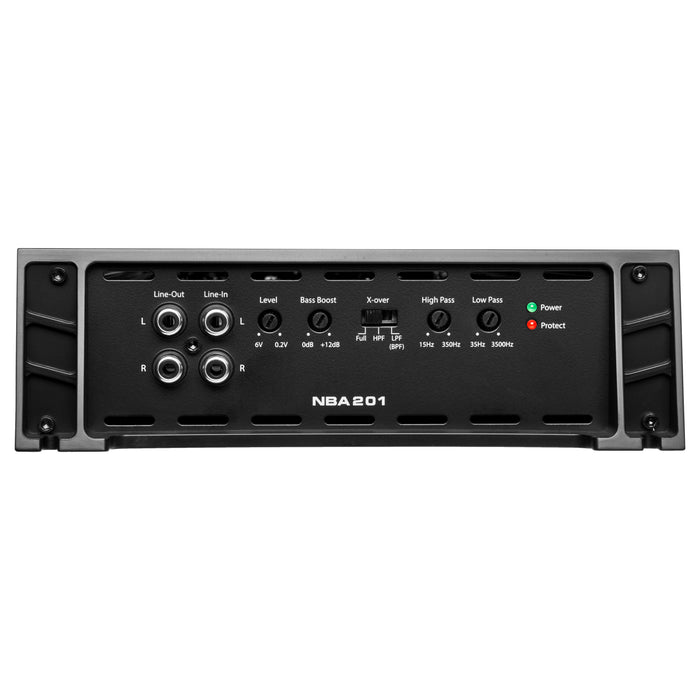

  • Input sensitivity:
    • Low level: 0.2V-6V
  • Frequency Response: 10 - 50 kHz
  • Total Harmonic Distortion (THD): 0.5%
  • Signal to Noise Ratio: 90 dB
  • Variable high-pass filter: 15 - 350 Hz, 24 dB/octave
  • Variable low-pass filter: 35 - 3500 Hz, 24 dB/octave
  • Subsonic filter: , 24 dB/octave
  • Variable Bass Boost: 0 - 12 dB bass boost at 50 Hz

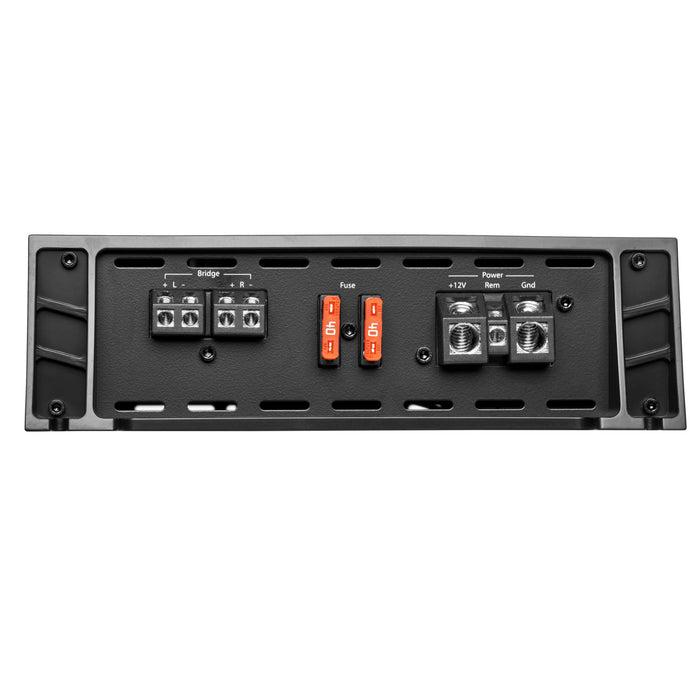

  • Fuse Rating: 40A x 2

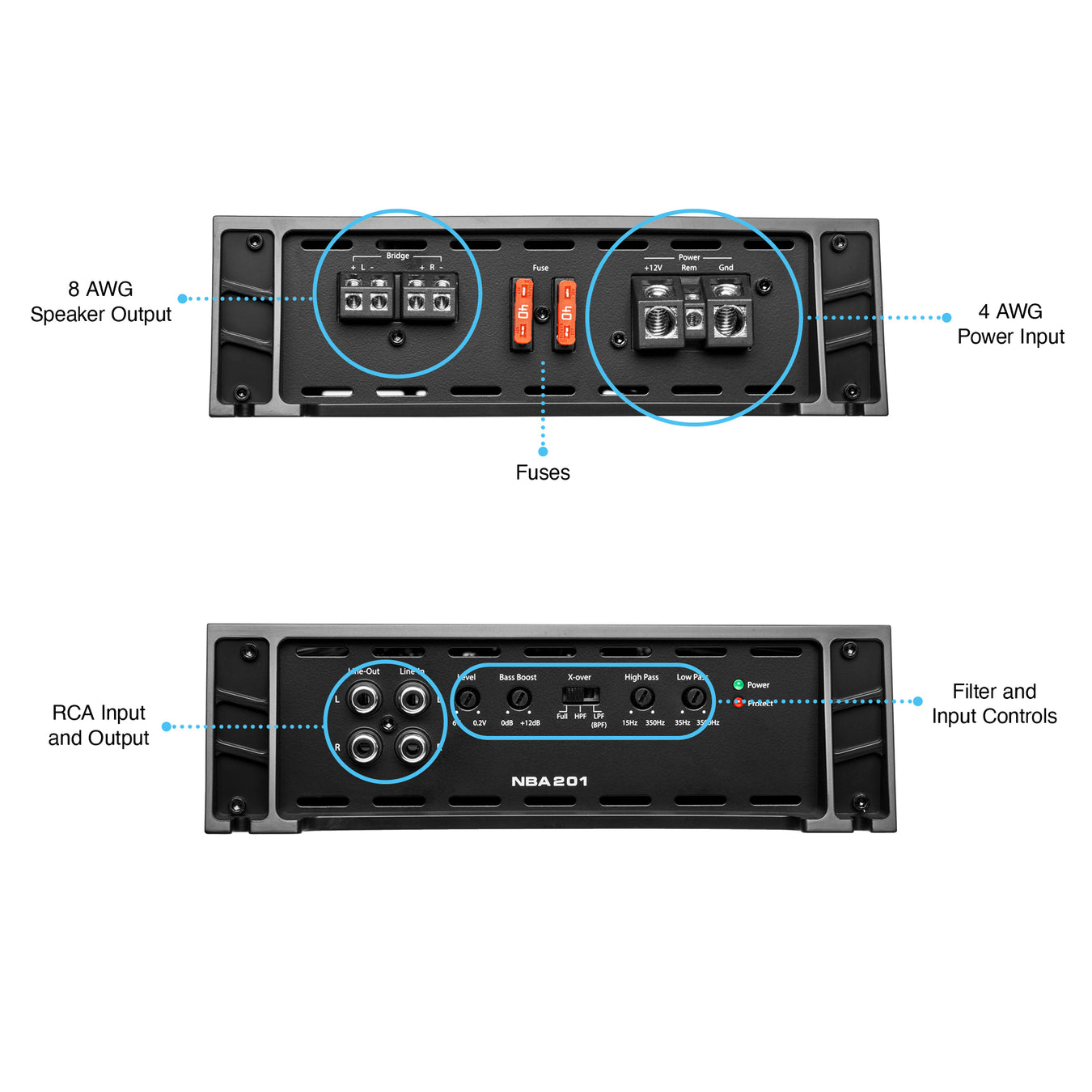

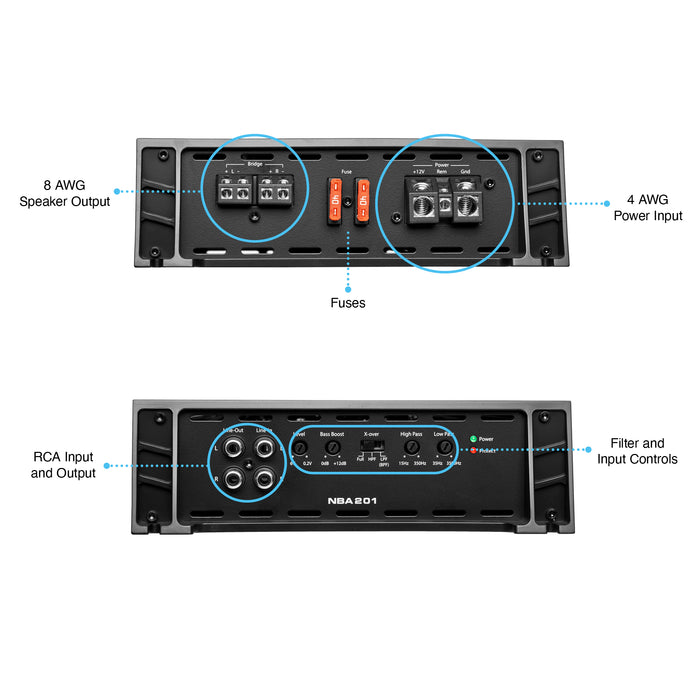

  • 4 AWG gauge power and ground wiring are recommended for installation.
  • Dimensions: 18.9"W x 7.8"L x 2.4"H
  • 1-year Warranty from the Original Purchase Date

 N-Series owner’s manual

Customer Reviews

Based on 13 reviews
77%
(10)
15%
(2)
0%
(0)
0%
(0)
8%
(1)
D
Donald Smith
Great amp!

Arrived quickly, packaged well, & does what its supposed to do! Highly recommend.

C
Canan
A little big, but perfect so 5 stars

It is big, I still give it 5 stars they have the measurements listed. it powers 4, 3 way speakers and 2 tweeters in my single cab, it definitely made a difference for the speakers to be running off amp. Great quality. Simple as putting all the wires in the right place and it works like a dream. Its safety features will save your battery. They turn off when battery starts dropping in juice. (While hooking up the amp, I only had my truck turned over and I noticed nothing was working until I cranked my truck and watched my vaults build back up, turning the power back onto the amp

j
john
Great price for the quality

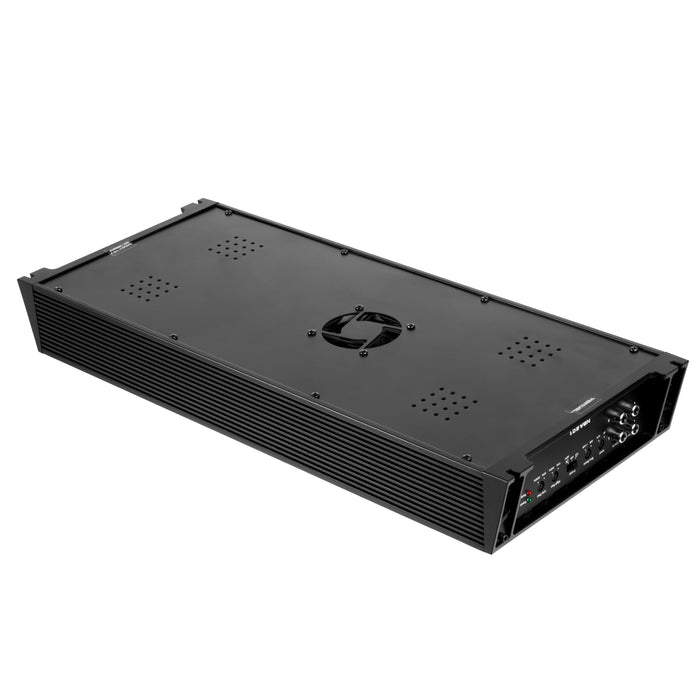

Clear sound and pushes plenty of power for what I need. I have it hooked to a set of NVX 6.5” components and it works great. Tuning was pretty easy as was overall installation. I love that it has built in cooling fans, that’s hard to come by these days…

T
T
Great quality and value

Definitely recommend buying

j
jeremy
NVX NBA201

Bought 4 of these amps off Amazon December 28, 2022. Did some bench testing for low voltage protection, high voltage protection, and speaker output short circuit protection. Amplifier passed with flying colors. Next was sound quality test which is purely subjective. I am very particular with sound quality. I will put these amps up against my old school Phoenix Gold M series amps any day of the week. Plain and simple I am blown away by the performance of these amplifiers ESPECIALLY for the price point. Very warm sounding. Very reliable. Very powerful. Surprisingly does not get hot running at 4 ohm stereo. That is surprising for any class A/B amplifier. This review is coming from a 47 year old car audio enthusiast that started the journey at 14 years of age.
