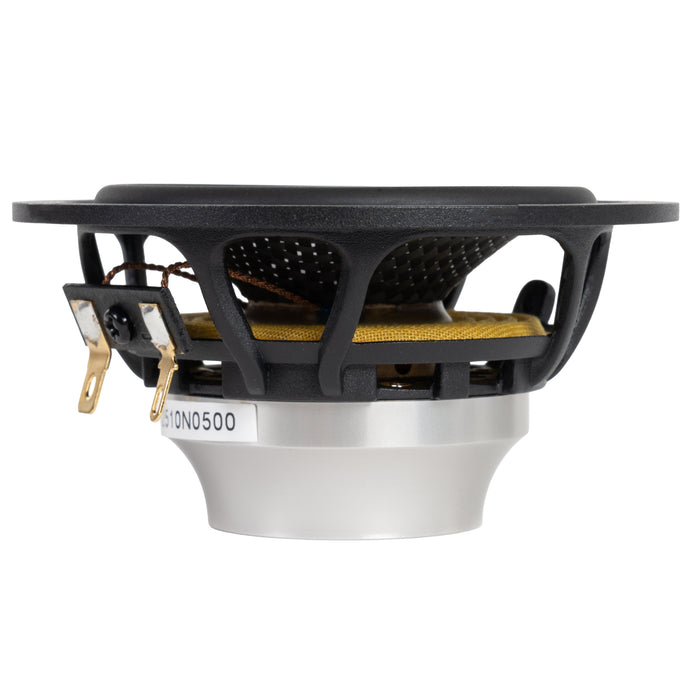

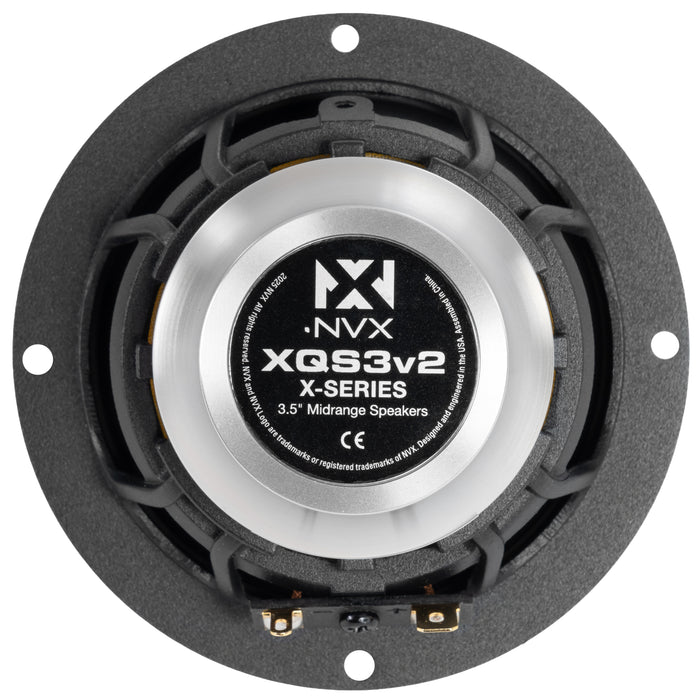

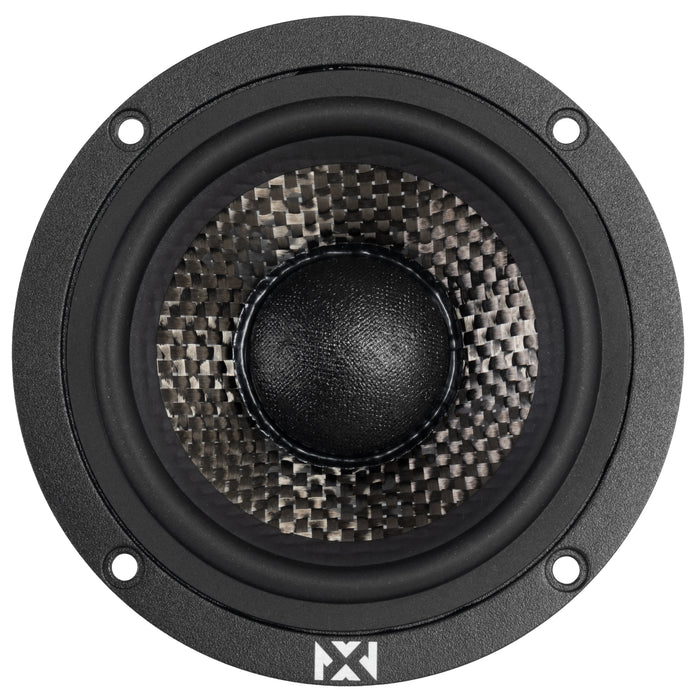

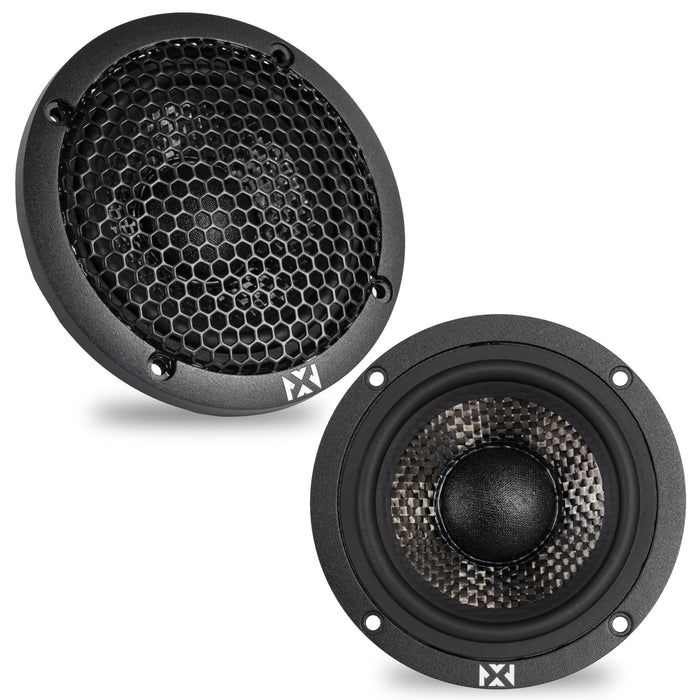

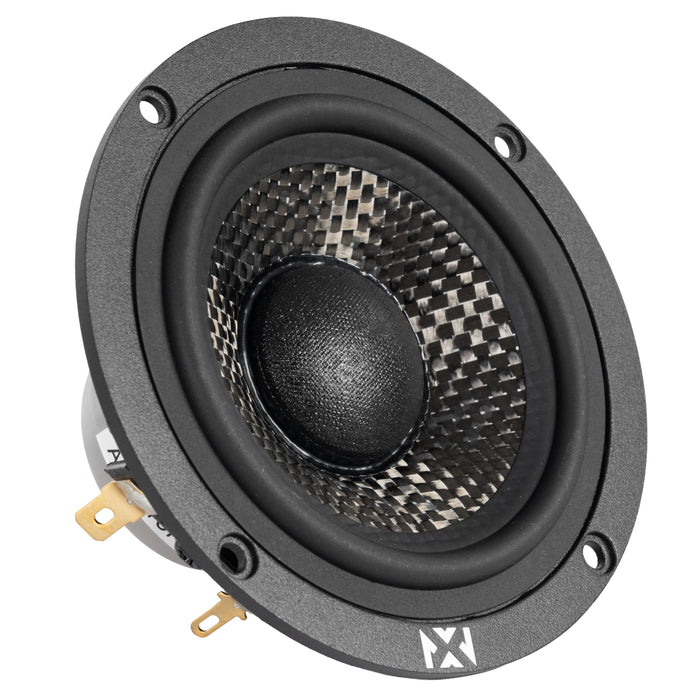

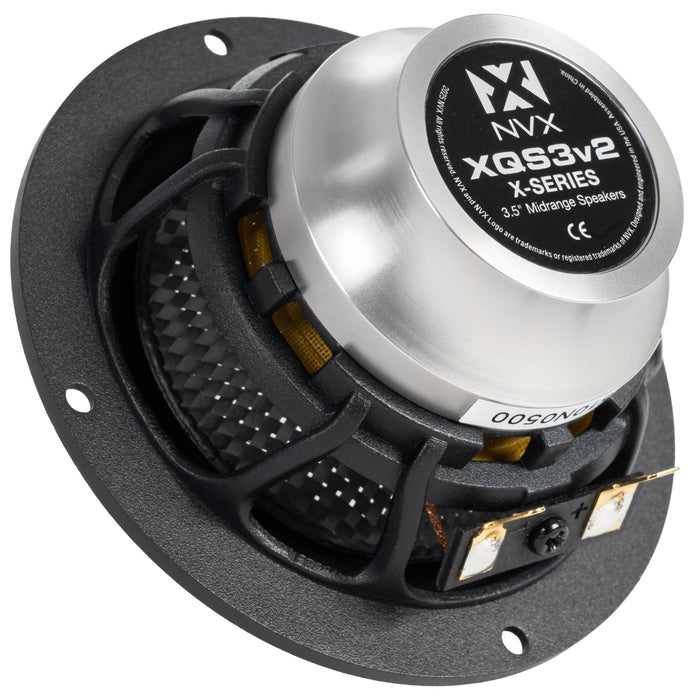

XQS3v2 200W Peak (100W RMS) 3.5" X-Series v2 NEO Midrange Speakers with Carbon Fiber Cones

Product Details:

• 3-1/2" X Series Mid-range Car Speakers
• Power Handling:
  • Peak: 200 watts per pair / 100 watts each
  • RMS: 100 watts per pair / 50 watts each
• Xmax: 4mm (One-way)
• Carbon Fiber cone material
• Rubber speaker surround
• 1" High-Temperature voice coil
• Neodymium magnet motor structure
• Top-mount Depth: 1.62"
• Cutout Dimensions: 2.85"
• Impedance: 4 ohm
• Frequency Response: 200 - 18000 Hz
• Sensitivity: 85 dB
• CEA-2031 compliant

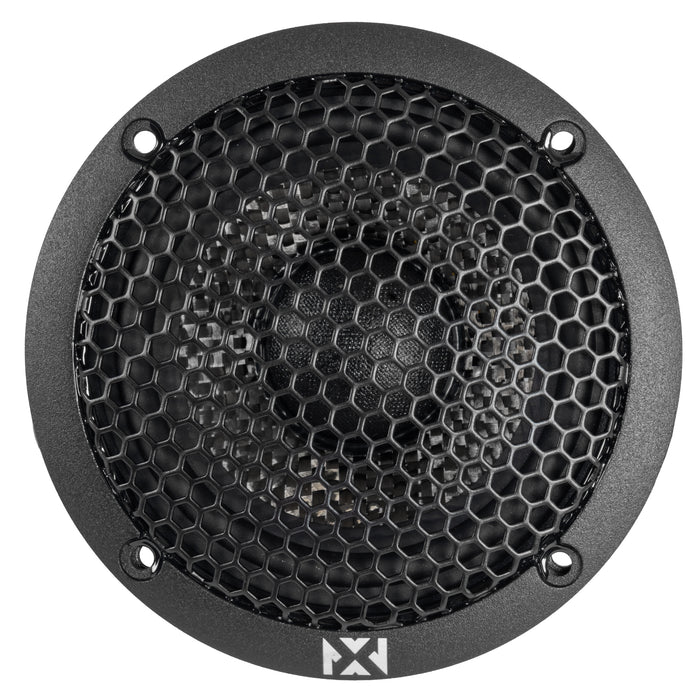

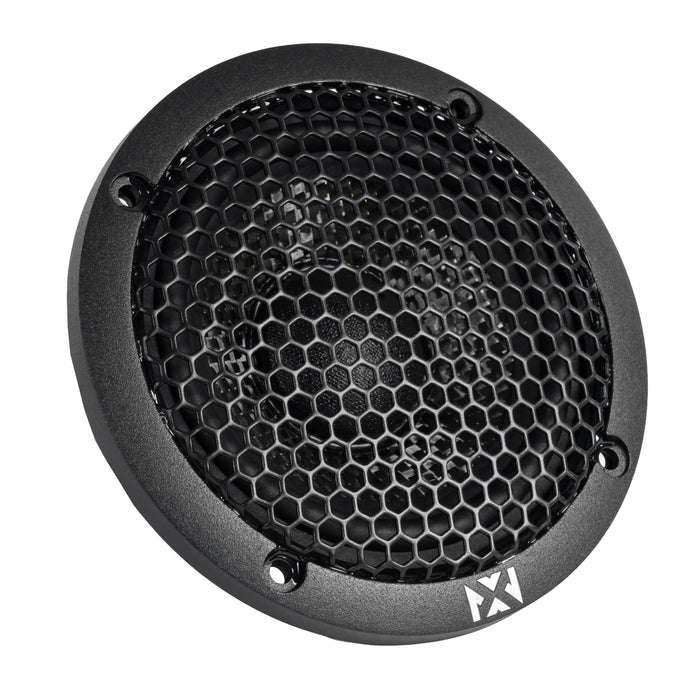

• Speaker Grilles Included
• MFR #: XQS3v2
• 1-year Warranty from the Original Purchase Date

Priced Per Pair

T/S Parameters:

• Voice Coil Resistance (Re): 3.2 Ω
• Free Air Resonance (Fs): 150 Hz
• Equivalent Compliance (Vas): 0.59 L
• Electrical “Q” (Qes): 0.958
• Mechanical “Q” (Qms): 4.942
• Total Speaker “Q” (Qts): 0.803
• Moving Mass (Mms): 2.549 g
• Mechanical Compliance (Cms): 0.457 mm/N
• Magnetic Strength (BL): 2.765 T·m
• Effective Piston Area (Sd): 4.80 sq. in (0.0031 sq. m)
